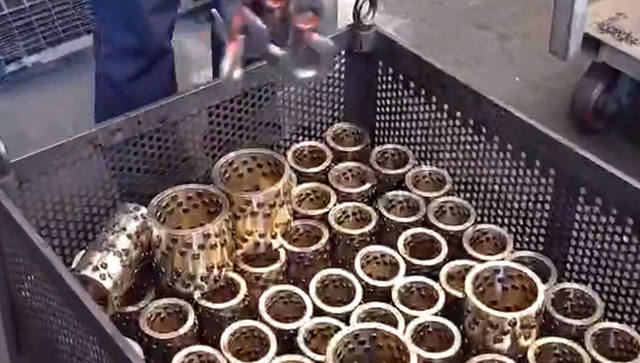

Self lubricating bearing

Self lubricating bearing 1 has no oil lubrication or less oil lubrication, and can be used without maintenance or with less maintenance. 2. Good wear resistance, low friction coefficient, and long service life. 3. With an appropriate amount of elastic-plastic properties, it can distribute stress over a wider contact surface and improve the bearing capacity. The static and dynamic friction coefficients are similar, thus ensuring the working accuracy of the machinery.

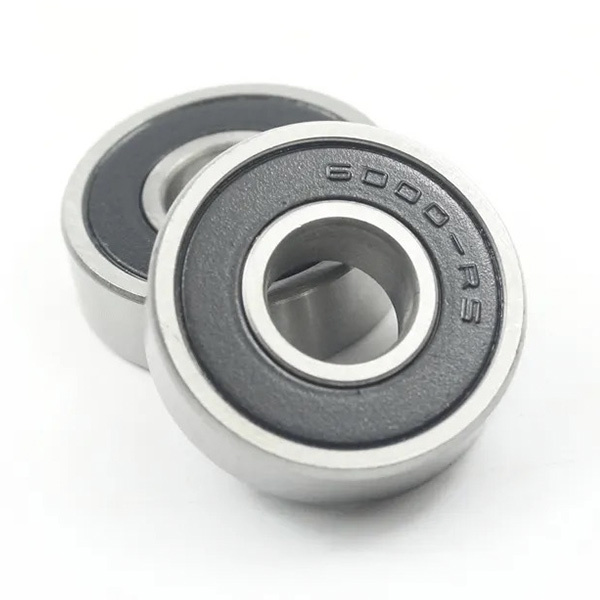

Deep Groove Ball Bearings 6400 Series

The basic designs of single row deep groove ball bearings are open and sealed. For manufacturing reasons, open bearings of the same size as sealed or dust-proof bearings may also have seal grooves in the outer ring. Bearings with shields or seals on both sides are maintenance-free, lubricated for life. Such bearings cannot be cleaned and the temperature cannot exceed 80 degrees Celsius.

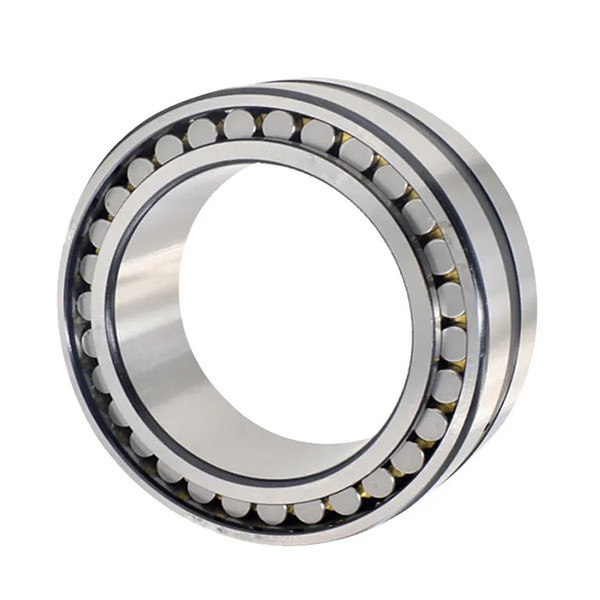

Cylindrical Roller Bearings NUP Series

The outer ring of an NUP cylindrical bearing has two fixed ribs, whereas the inner ring of the cylindrical bearing has one fixed rib and one loose rib. This means that the NUP cylindrical bearing is able to axially locate the shaft in both directions. And It has high radial load carrying capacity, and low friction.

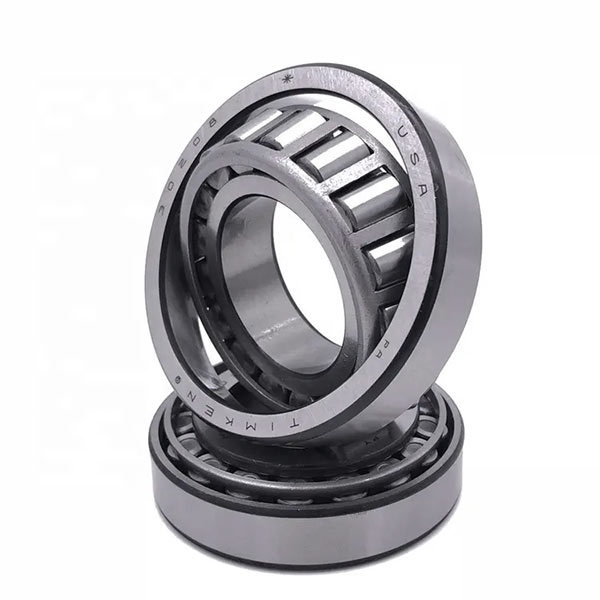

Tapered Roller Bearings Single Row

Single-row tapered roller bearings can withstand radial and axial loads mainly based on radial loads, while large taper angle bearings can withstand radial and axial loads mainly based on axial loads, and additional radial loads are generated under the action of radial loads. axial force. Therefore, it is generally configured in pairs and can withstand radial loads. If used alone, the external axial force must be greater than the additional axial force.

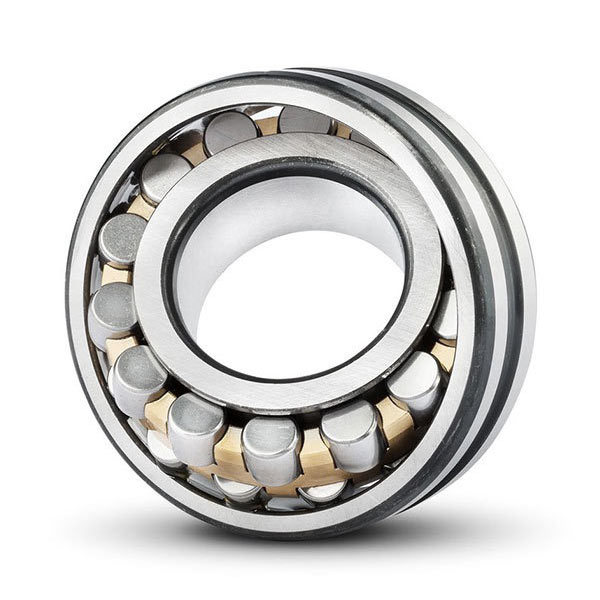

Spherical Roller Bearings 213xx Series

This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

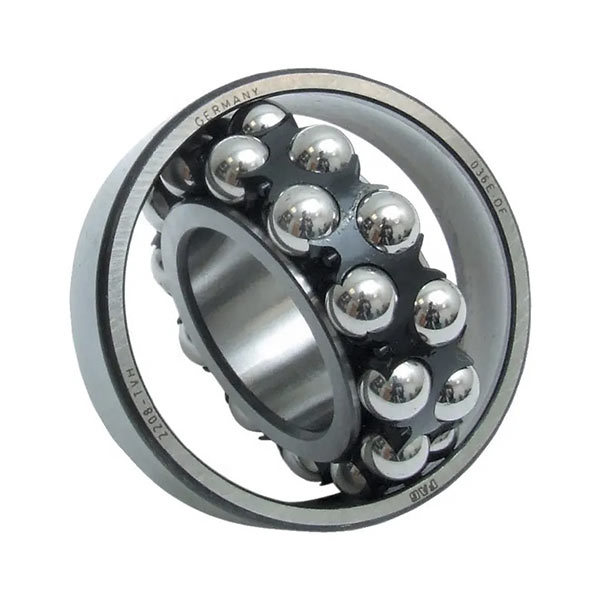

Self-aligning Ball Bearings 2200 Series

1. The self aligning ball bearings consist of two rows of balls and a common concave sphered raceway in the outer ring and theinner ring. 2. This type bearings have the self-aligning capacity which make the bearings insensitive to angular misalignments of the shaft relative to the housing. 3. The series of the bearings: 1200, 1300, 2200, 2300 and so on. 4. The bearings are also available with a cylindrical bore or, in certain size ranges, with a tapered bore.

Pillow Block Bearings UCFU Type

Square flanged ball bearing unit with set screw locking, cast iron. They consist of an insert bearing, with an extended inner ring and grub screw locking, suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

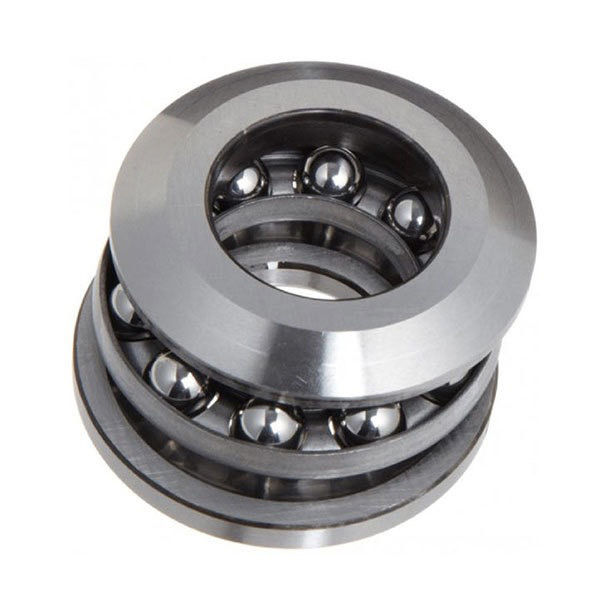

Thrust Ball Bearings 53000U Series

53000 U-Bearings are bearings with self-aligning seat washers that can be used with self-aligning seat washers to compensate for angular misalignment between the support surface in the housing and the shaft. Depending on the bearing series, spherical seat washers have the basic designation U 2, U 3 or U 4, plus two digits indicating the size (eg spherical seat washer U 320 for bearing 53320).
